LASER MODULE

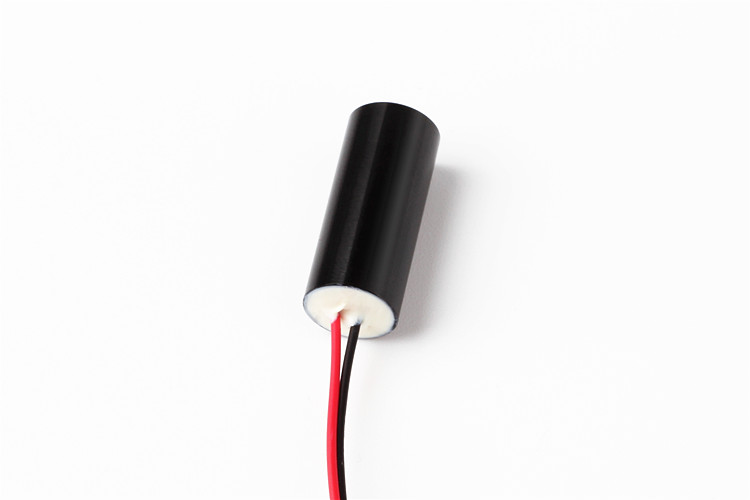

D9mm Line/Cross Line Laser Diode Module
- Wavelength: 450nm 520nm 635nm 650nm 780nm 850nm 980nm
Output power:5mw/10mW
Diameter:9x21mm
Lens:PMMA
Line ：(15°, 30°, 45°, 60°, 90°, 110°, 120° )
Operating Voltage:3V/5V
Optional Operation mode:APC
Power Stability:<5%
Operating Temperature:-10℃~ +50℃
-
1. Laser Diode
-
We have laser diodes with power from 5mw to 5W with the following wavelength: 405nm 410nm 445nm 450nm 455nm 488nm 505nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 905nm 940nm 980nm RGB and so on.
2. Optical Lens
The laser beam of the laser module will depend on the inner optical lens. Except for dot, line and cross beam, we also can do other laser beams with DOE according to your requirements.
3. OEM/ODM
We offer professional ODM and OEM service, so the housing size, power, beam Shape, beam Size and the wire length of the laser module can be customized!
