Please contact us with your application (or usage scenario) and laser specifications, such as wavelength, output power, the working distance (or range), beam size or line thickness and housing dimension, etc. We will recommend the best product according to your requirements.
2. Product Specification
|
Specification |

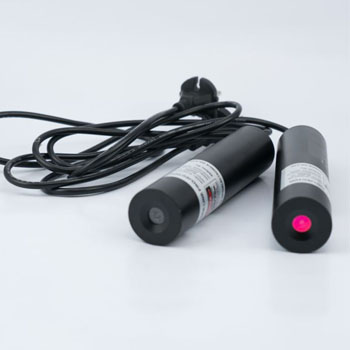

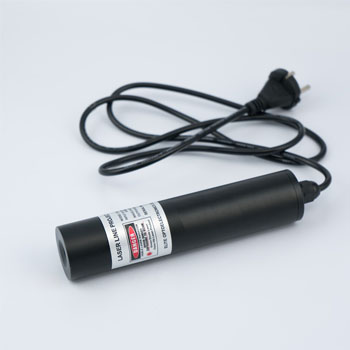

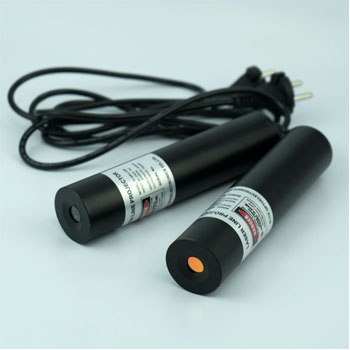

Industrial Laser Diode Module |
|
Wavelength |
780~980nm |
|
Output Power |
1mW ~ 200mW |
|
CDRH Class |
I, II, IIIa, IIIb |
|
Fan Angle |
3° 5° 10° 15° 20° 30° 45° 60° 75° 90° 105° 120° |
|
Linewidth at 1/e^2 |
0.1mm, 0.3mm, 0.5mm, 1.0mm, 2.0mm (Custom) |
|
Laser Drive Modes |
CW, Analog Modulation, Digital Modulation |
|
Lens |
Optical Glass Lens |
|
Dimension |
Ø6.5x14mm ~ Ø14x50mm (Custom) |
|
Operating Current |
< 300mA |
|
Input Voltage |
3.0V 5.0V 9.0V 12V 24V |
|
Operating Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
MTBF |
> 10,000 Hours |
