Infrared laser module(780~980n

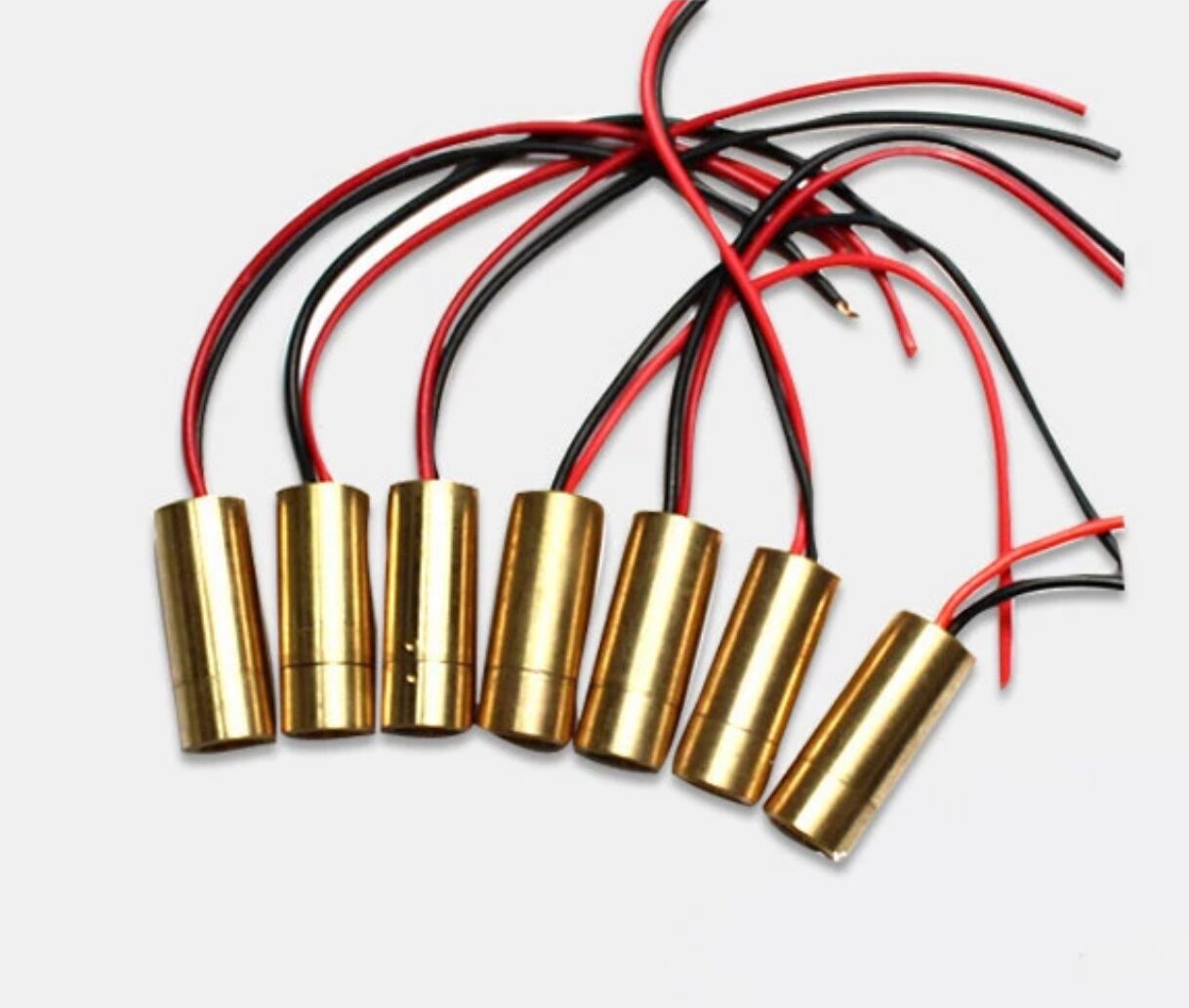

Infrared laser module (808~940nm)
- Wavelength: 808~940nm
Dimensions: 9*20mm
Output Power: 5mW
Input Voltage: 3-5V
Input Current: 140mA
Storage Temperature:-40ºC~85ºC
Working Temperature:-20ºC~60ºC
Beam Shape:60 degree line
Service Life:10000H
-
1. Laser Diode
We have laser diodes with power from 5mw to 5W with the following wavelength: 405nm 410nm 445nm 450nm 455nm 488nm 505nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 905nm 940nm 980nm RGB and so on.
2. Optical Lens
The laser beam of the laser module will depend on the inner optical lens. Except for dot, line and cross beam, we also can do other laser beams with DOE according to your requirements.
3. OEM/ODM
We offer professional ODM and OEM service, so the housing size, power, beam Shape, beam Size and the wire length of the laser module can be customized!
We support multi-beam customization, if needed or want to know with more product information welcome to consult us!
